EMC/EMI Shielding Flexible Metal Conduit, Square-lock Gal, Stainless Steel Braiding

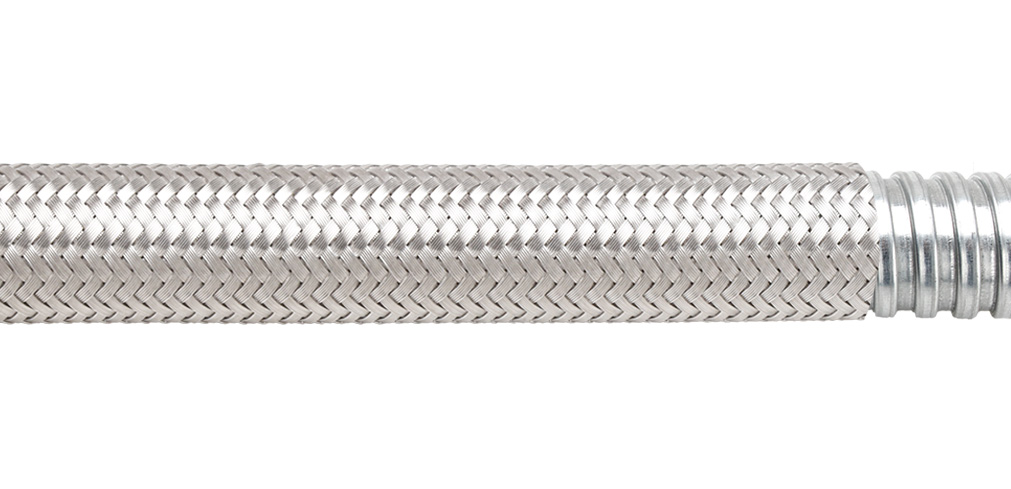

EMC/EMI Shielding, Braided Flexible Metal Conduit - PEG13SB series is manufactured with galvanized steel strip by continuous wound in square-lock profile and with stainless steel braiding. This is the reinforced type of electrical protection flexible conduit. The conduit sizes meet with the system normally used in Europe market. This series of flexible conduit is in excellent mechanical characteristics. Conduit is good in flexibility and the braiding brings further abrasion resistance. It is adaptable for most of the environment temperatures and also low fire hazard. Basic level of EMC shielding is available when installed in the ambience with possible electromagnetic interference. The material is RoHS approved as well to answer the demand of environmental protection product.
Feature
-
Material:
Galvanized Steel + Stainless Steel Braiding -
Profile：
Square-lock -
Temperature Range :
-45℃~+350℃ -
IP Rating :
IP 40 -
Flexibility :
High -
EMC Shielding :
Basic -
RoHS Compliance :
Yes
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Braiding (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PEG13SB-10 | 6.8 | 10.1 | 30 | 25 | 300*300*110 |  |
| 12 | 5/16 | PEG13SB-12 | 10.3 | 14.1 | 35 | 25 | 300*300*200 | |
| 16 | 3/8 | PEG13SB-16 | 13.0 | 17.1 | 40 | 25 | 370*370*150 | |
| 20 | 1/2 | PEG13SB-20 | 16.9 | 21.6 | 40 | 25 | 430*430*200 | |
| 25 | 3/4 | PEG13SB-25 | 21.4 | 26.1 | 50 | 25 | 500*500*150 | |
| 32 | 1 | PEG13SB-32 | 28.1 | 33.1 | 55 | 10 | 500*500*300 | |
| 40 | 1-1/4 | PEG13SB-40 | 37.7 | 43.6 | 70 | 10 | 550*550*320 | |
| 50 | 1-1/2 | PEG13SB-50 | 48.4 | 54.1 | 90 | 10 | 550*550*350 | |
| 63 | 2 | PEG13SB-63 | 57.5 | 63.6 | 95 | 5 | 550*550*300 | |
