EMC Shielding Flexible Metal Conduit (Liquid Tight), Interlocked Gal, Tinned Copper Braiding, PVC Jacket

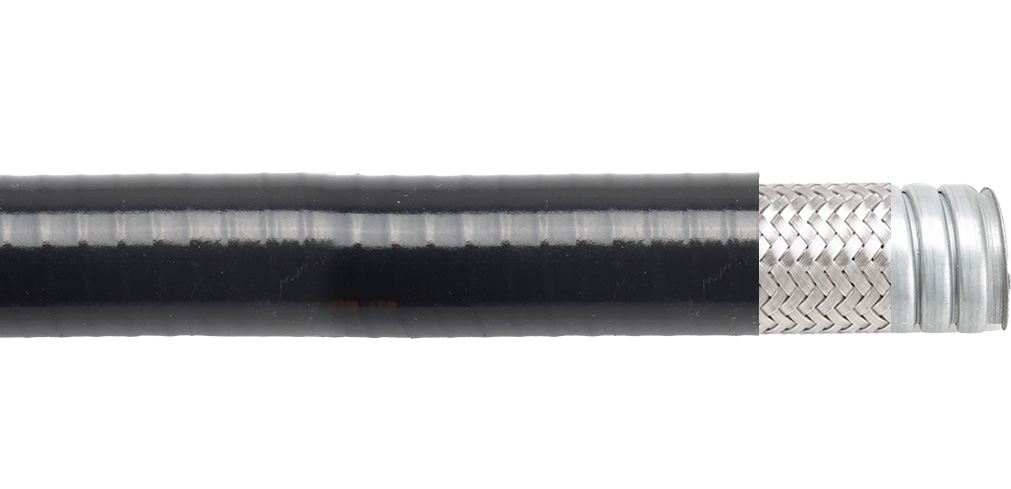

EMC Shielding Braided Flexible Metal Conduit (Liquid Tight) - PLTG23TBPVC series is manufactured with galvanized steel strip by continuous wound in interlock profile shielded with tinned copper braiding and then coated by PVC jacket. This is an upgrade design basing on the EMC shielding series. The conduit sizes meet with the system normally used in Asia market. This series of flexible conduit is in excellent mechanical characteristics and moisture/water seal. The braiding brings further abrasion resistance. High level of EMC shielding is available when installed in the environment with possible electromagnetic interference. The PVC jacket is also fire retardant and belongs to low fire hazard product. The material is RoHS approved as well to answer the demand of environmental protection product.
Feature
-
Material:
Galvanized Steel + Tinned Copper Braiding + PVC Jacket -
Profile：
Interlocked -
Temperature Range :
-20℃~+80℃ -
IP Rating :
IP 66 (Fit with ABZ70 & ABZ73 connector series) -
Flexibility :
Low (≤2") -
EMC Shielding :
Advanced (65dB/100MHz) -
Tensile Resistance :
1000N -
RoHS Compliance :
Yes
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Coating (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 16 | 3/8 | PLTG23TBPVC-3/8 | 12.29~12.80 | 18.55~19.25 | 105 | 25 | - |  |
| 20 | 1/2 | PLTG23TBPVC-1/2 | 15.80~16.31 | 21.85~22.55 | 125 | 25 | - | |
| 25 | 3/4 | PLTG23TBPVC-3/4 | 20.83~21.34 | 26.95~27.85 | 145 | 25 | - | |
| 32 | 1 | PLTG23TBPVC-1 | 26.44~27.08 | 34.25~34.75 | 185 | 10 | - | |
| 40 | 1-1/4 | PLTG23TBPVC-1-1/4 | 35.05~35.81 | 43.00~43.80 | 225 | 10 | - | |
| 50 | 1-1/2 | PLTG23TBPVC-1-1/2 | 40.01~40.64 | 48.80~50.00 | 275 | 10 | - | |
| 63 | 2 | PLTG23TBPVC-2 | 51.31~51.94 | 61.20~62.20 | 315 | 10 | - | |
