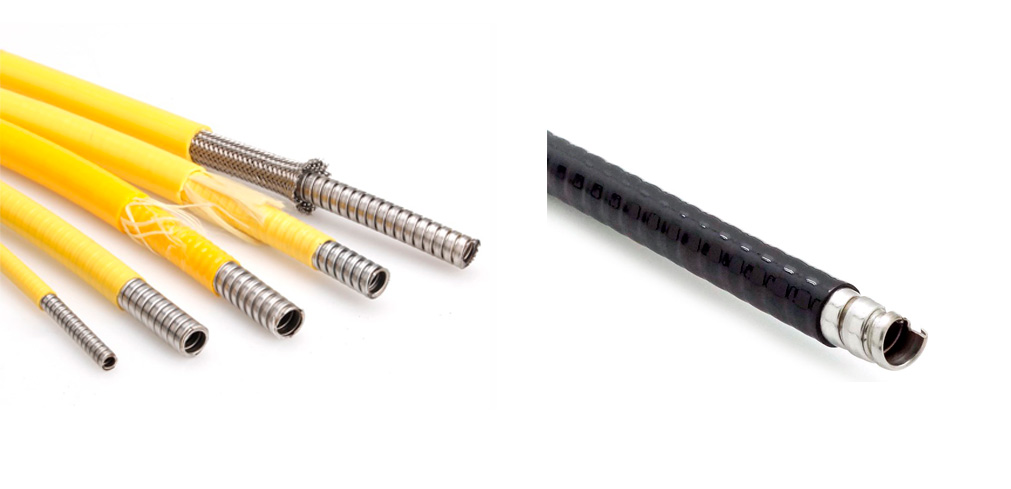

Stainless Steel Interlocked + PVC Jacket
Flexible Electrical Conduit, WP-S2P1 series is manufactured with stainless steel strip by continuous wound in interlock profile. The size range of this series of flexible tube is ID 4.0~16.1mm. It is featured with excellent flexibility and higher tensile resistance. Its miniaturized diameter makes the tube be light and also pressure resistance. That offers benefit to protect wires on constant moving part and in complex or narrow spaces. For those locations with splash or higher humidity, electrical flexible conduit with plastic jacket is recommended.
Specially applicable for protection of signal wire on machine tools, automation system or equipment, laser generator for laser cutting/marking/welding, robot, access control, security system, etc.
Feature
-
Material:
Stainless Steel Interlocked + PVC Jacket -
Temperature Range：
-20℃~+80℃, -40℃~+105℃ -
IP Rating
IP 66 -
Jacket Color：
Black/Grey (Standard), other colors are available by consult. -
Flexibility：
High -
Fire Retardant :
Self-extinguishing -
UV Resistance :
By ordering -
RoHS Compliance :
Yes -
standard:
Follow IEC standard, 2~3 joints are allowed in a length of 100M.
Parameter
| Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Tensile Resistance (kg) | Package/Roll (m) |
|---|---|---|---|---|---|
| P040070S2P1 | 4.0±0.2 | 7.0±0.25 | ≤45 | ≥100 | 200 |
| P046076S2P1 | 4.6±0.2 | 7.6±0.25 | ≤50 | ≥100 | 200 |
| P050080S2P1 | 5.0±0.2 | 8.0±0.25 | ≤50 | ≥100 | 200 |
| P054088S2P1 | 5.4±0.2 | 8.8±0.25 | ≤52 | ≥120 | 100 |
| P059094S2P1 | 5.9±0.2 | 9.4±0.25 | ≤57 | ≥120 | 100 |
| P062092S2P1 | 6.2±0.2 | 9.2±0.25 | ≤57 | ≥100 | 100 |
| P066100S2P1 | 6.6±0.2 | 10.0±0.25 | ≤55 | ≥120 | 100 |
| P070105S2P1 | 7.0±0.2 | 10.5±0.25 | ≤65 | ≥120 | 100 |
| P080125S2P1 | 8.0±0.2 | 12.5±0.25 | ≤75 | ≥120 | 100 |
| P095145S2P1 | 9.5±0.2 | 14.5±0.25 | ≤75 | ≥140 | 100 |
| P125177S2P1 | 12.5±0.3 | 17.7±0.35 | ≤95 | ≥140 | 50 |
| P145195S2P1 | 14.5±0.3 | 19.5±0.35 | ≤100 | ≥140 | 50 |
| P150205S2P1 | 15.0±0.3 | 20.5±0.35 | ≤110 | ≥180 | 50 |
| P161213S2P1 | 16.1±0.3 | 21.3±0.35 | ≤120 | ≥200 | 50 |
