Stainless Steel Interlocked + PVC Jacket + Stainless Steel Braiding

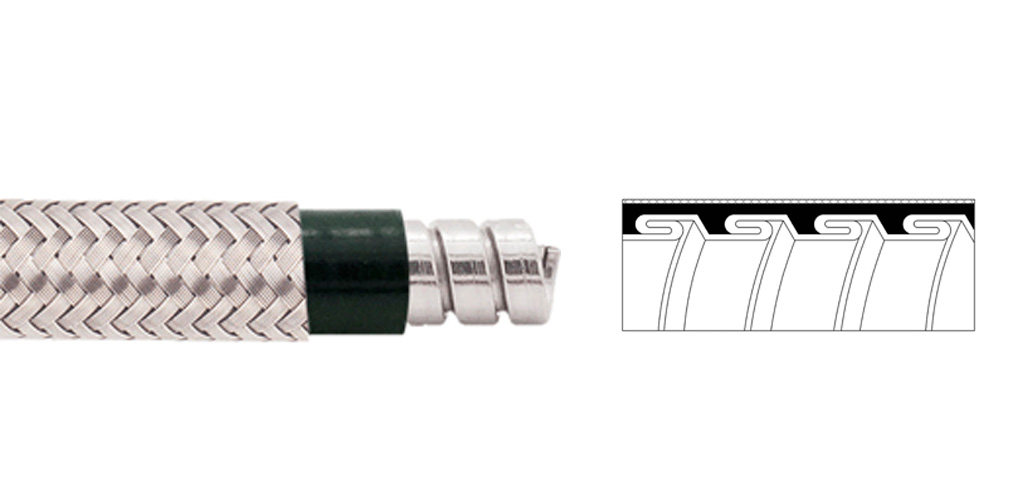

Flexible Electrical Conduit, WP-S1P1SB series is manufactured with stainless steel strip by continuous wound in interlock profile. The size range of this series of flexible tube is ID 4.0~16.1mm. It is featured with excellent flexibility and higher tensile resistance. Its miniaturized diameter makes the tube be light and also pressure resistance. That offers benefit to protect wires on constant moving part and in complex or narrow spaces. As for the demand of high abrasion resistance, electrical flexible conduit with metal mesh braiding is the proper one to choose.
Specially applicable for protection of signal wire on machine tools, automation system or equipment, robot, access control and security system and etc..
Feature
-
Material:
Stainless Steel Interlocked + PVC Jacket + Stainless Steel Braiding -
Temperature Range：
-20℃~+80℃, -40℃~+105℃ -
IP Rating
IP 66 -
Jacket Color：
Black/Grey (Standard), other colors are available by consult. -
Flexibility：
Medium -
Fire Retardant :
Self-extinguishing -
UV Resistance :
By ordering -
EMC Shielding：
Standard -
RoHS Compliance :
Yes -
Standard :
Follow IEC standard, 2~3 joints are allowed in a length of 100M.
Parameter
| Part Number | ID (mm) | OD w/Braiding (mm) | Bending Radius (mm) | Tensile Resistance (kg) | Package/Roll (m) |
|---|---|---|---|---|---|
| P040080S2P1SB | 4.0±0.2 | 8.0±0.3 | ≤50 | ≥100 | 200 |
| P046086S2P1SB | 4.6±0.2 | 8.6±0.3 | ≤55 | ≥100 | 200 |
| P050090S2P1SB | 5.0±0.2 | 9.0±0.3 | ≤55 | ≥100 | 200 |
| P054098S2P1SB | 5.4±0.2 | 9.8±0.3 | ≤57 | ≥120 | 100 |
| P059104S2P1SB | 5.9±0.2 | 10.4±0.3 | ≤62 | ≥120 | 100 |
| P062102S2P1SB | 6.2±0.2 | 10.2±0.3 | ≤62 | ≥100 | 100 |
| P066110S2P1SB | 6.6±0.2 | 11.0±0.3 | ≤60 | ≥120 | 100 |
| P070115S2P1SB | 7.0±0.2 | 11.5±0.3 | ≤70 | ≥120 | 100 |
| P080135S2P1SB | 8.0±0.2 | 13.5±0.3 | ≤80 | ≥120 | 100 |
| P095155S2P1SB | 9.5±0.2 | 15.5±0.3 | ≤80 | ≥140 | 100 |
| P125190S2P1SB | 12.5±0.3 | 19.0±0.4 | ≤100 | ≥140 | 50 |
| P145208S2P1SB | 14.5±0.3 | 20.8±0.4 | ≤105 | ≥140 | 50 |
| P150218S2P1SB | 15.0±0.3 | 21.8±0.4 | ≤115 | ≥180 | 50 |
| P161226S2P1SB | 16.1±0.3 | 22.6±0.4 | ≤125 | ≥200 | 50 |
