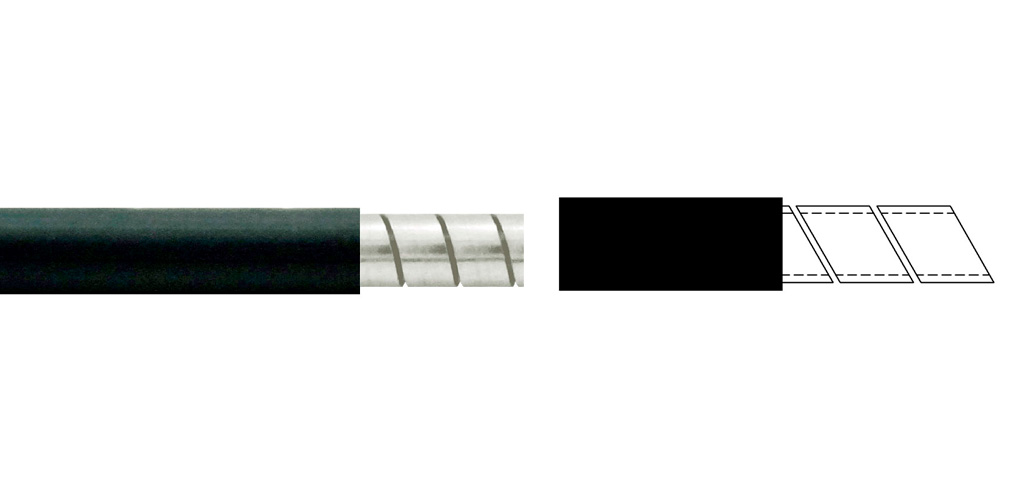

Stainless Steel Mono Coil Tube (Higher Rigidity) + PVC Jacket
Flexible Electrical Conduit, Mono Coil Type (MC2-J-P) is manufactured with stainless steel strip or stainless steel wire by continuous wound in mono coil profile. The conduit sizes is ID 1.7~7.0mm. The feature of this series product are included smaller-caliber, lighter weight, higher bending resistance and superior flexibility. For those locations with splash or higher humidity, electrical flexible conduit with plastic jacket is recommended.
Applications: Extensively applied for the optical measuring instrument, medical instruments, industrial endoscope, optical communication network system, automated system and equipment, robots, light guide tube and etc.
Feature
-
Material:
Stainless Steel Mono Coil Tube (Higher Rigidity) + PVC Jacket -
Temperature Range：
-20℃~+80℃, -40℃~+105℃ -
IP Rating
IP 66 -
Jacket Color：
Grey/Red/Blue/Black (Standard), other colors are available by consult. -
Flexibility：
High -
RoHS：
Yes
Parameter
| Part Number | ID (mm) | OD w/Jacket (mm) | Weight (g/m) | Package/Roll (m) |
|---|---|---|---|---|
| MC2-J017029-SPB | 1.7±0.2 | 2.9±0.2 | 8 | 100 |
| MC2-J022032-SPB | 2.2±0.2 | 3.2±0.2 | 14 | 100 |
| MC2-J028040-SPB | 2.8±0.2 | 4.0±0.2 | 19 | 100 |
| MC2-J040050-SPB | 4.0±0.2 | 5.0±0.2 | 22 | 100 |
| MC2-J050065-SPB | 5.0±0.2 | 6.5±0.2 | 37 | 100 |
