Stainless Steel Square Lock + PVC Jacket

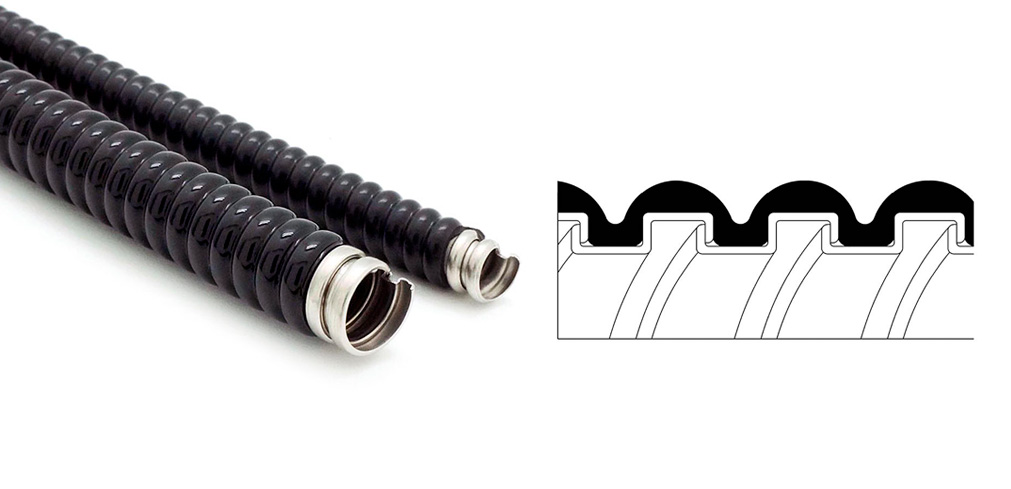

Flexible Electrical Conduit, WP-S1P2 series is manufactured with stainless steel strip by continuous wound in square lock profile. The size range of this series of flexible tube is ID 3.5~16.1mm. It is featured with excellent flexibility and its miniaturized diameter makes the tube be light and also pressure resistance. That offers benefit for deployment in complex or narrow spaces. For those locations with splash or higher humidity, electrical flexible conduit with plastic jacket is recommended. That offers not only waterproof but also fire retardant.
Specially applicable for protection of signal wire on tools, automation system or equipment, robot, access control and security system and etc..
Feature
-
Material:
Stainless Steel Square Lock + PVC Jacket -
Temperature Range：
-20℃~+80℃, -40℃~+105℃ -
IP Rating
IP 66 -
Jacket Color：
Black/Grey (Standard), other colors are available by consult. -
Flexibility：
High -
Fire Retardant :
Self-extinguishing -
UV Resistance :
By ordering -
RoHS Compliance :
Yes -
Standard：
Follow IEC standard, 2~3 joints are allowed in a length of 100M.
Parameter
| Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Tensile Resistance (kg) | Package/Roll (m) |
|---|---|---|---|---|---|
| P015034S1P2 | 1.5±0.1 | 3.4±0.2 | ≤23 | ≥50 | 100 |
| P018037S1P2 | 1.8±0.2 | 3.7±0.2 | ≤23 | ≥50 | 100 |
| P022044S1P2 | 2.2±0.2 | 4.4±0.2 | ≤20 | ≥50 | 100 |
| P026048S1P2 | 2.6±0.2 | 4.8±0.2 | ≤20 | ≥50 | 100 |
| P030056S1P2 | 3.0±0.2 | 5.6±0.2 | ≤18 | ≥50 | 100 |
| P032063S1P2 | 3.2±0.2 | 6.3±0.2 | ≤18 | ≥50 | 100 |
| P035060S1P2 | 3.5±0.2 | 6.0±0.25 | ≤45 | ≥35 | 100 |
| P040070S1P2 | 4.0±0.2 | 7.0±0.25 | ≤50 | ≥50 | 100 |
| P045073S1P2 | 4.5±0.2 | 7.3±0.25 | ≤50 | ≥50 | 100 |
| P050078S1P2 | 5.0±0.2 | 7.8±0.25 | ≤50 | ≥50 | 100 |
| P055085S1P2 | 5.5±0.2 | 8.5±0.25 | ≤50 | ≥50 | 100 |
| P060090S1P2 | 6.0±0.2 | 9.0±0.25 | ≤50 | ≥50 | 100 |
| P065095S1P2 | 6.5±0.2 | 9.5±0.25 | ≤50 | ≥50 | 100 |
| P070100S1P2 | 7.0±0.2 | 10.0±0.25 | ≤50 | ≥60 | 100 |
| P075105S1P2 | 7.5±0.2 | 10.5±0.25 | ≤50 | ≥60 | 100 |
| P080110S1P2 | 8.0±0.2 | 11.0±0.25 | ≤50 | ≥65 | 100 |
| P090120S1P2 | 9.0±0.2 | 12.0±0.25 | ≤55 | ≥70 | 100 |
| P100130S1P2 | 10.0±0.2 | 13.0±0.25 | ≤60 | ≥80 | 100 |
| P115152S1P2 | 11.5±0.2 | 15.2±0.25 | ≤75 | ≥80 | 50 |
| P125166S1P2 | 12.5±0.3 | 16.6±0.35 | ≤95 | ≥80 | 50 |
| P144188S1P2 | 14.4±0.3 | 18.8±0.35 | ≤100 | ≥90 | 50 |
| P161205S1P2 | 16.1±0.3 | 20.5±0.35 | ≤105 | ≥120 | 50 |
