Stainless Steel Square Lock + Stainless Steel Braiding

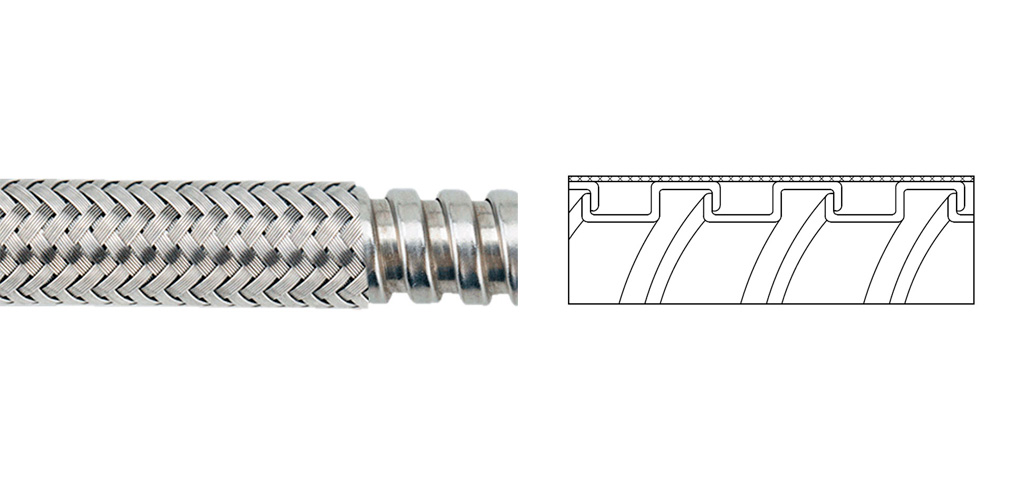

Flexible Electrical Conduit, WP-S1SB series is manufactured with stainless steel strip by continuous wound in square lock profile. The size range of this series of flexible tube is ID 3.5~16.1mm. It is featured with excellent flexibility and its miniaturized diameter makes the tube be light and also pressure resistance. That offers benefit for deployment in complex or narrow spaces. As for the demand of high abrasion resistance or preventing the interference of microwave or static electricity in the environment (EMC shielding), electrical flexible conduit with metal mesh braiding is the proper one to choose.
Specially applicable for protection of signal wire on tools, automation system or equipment, robot, access control and security system and etc..
Feature
-
Material:
Stainless Steel Square Lock + Stainless Steel Braiding -
Temperature Range：
-40℃~350℃ -
IP Rating
IP 40 -
Flexibility：
Medium -
EMC Shielding
Standard -
RoHS Compliance :
Yes -
Standard：
Follow IEC standard, 2~3 joints are allowed in a length of 100M.
Parameter
| Part Number | ID (mm) | OD w/Braiding (mm) | Bending Radius (mm) | Tensile Resistance (kg) | Package/Roll (m) |
|---|---|---|---|---|---|
| P035060S1SB | 3.5±0.2 | 6.0±0.25 | ≤45 | ≥35 | 200 |
| P040070S1SB | 4.0±0.2 | 7.0±0.25 | ≤50 | ≥50 | 200 |
| P045075S1SB | 4.5±0.2 | 7.5±0.25 | ≤50 | ≥50 | 200 |
| P050080S1SB | 5.0±0.2 | 8.0±0.25 | ≤50 | ≥50 | 150 |
| P055085S1SB | 5.5±0.2 | 8.5±0.25 | ≤50 | ≥50 | 150 |
| P060090S1SB | 6.0±0.2 | 9.0±0.25 | ≤50 | ≥50 | 150 |
| P065095S1SB | 6.5±0.2 | 9.5±0.25 | ≤50 | ≥50 | 100 |
| P070100S1SB | 7.0±0.2 | 10.0±0.25 | ≤50 | ≥60 | 100 |
| P075105S1SB | 7.5±0.15 | 10.5±0.25 | ≤50 | ≥60 | 100 |
| P080110S1SB | 8.0±0.2 | 11.0±0.25 | ≤50 | ≥65 | 100 |
| P090120S1SB | 9.0±0.2 | 12.0±0.25 | ≤55 | ≥70 | 100 |
| P100130S1SB | 10.0±0.2 | 13.0±0.25 | ≤60 | ≥80 | 100 |
| P115153S1SB | 11.5±0.2 | 15.3±0.25 | ≤75 | ≥80 | 50 |
| P125170S1SB | 12.5±0.3 | 17.0±0.35 | ≤95 | ≥80 | 50 |
| P144191S1SB | 14.4±0.3 | 19.1±0.35 | ≤100 | ≥90 | 50 |
| P161208S1SB | 16.1±0.3 | 20.8±0.35 | ≤105 | ≥120 | 50 |
