Tungsten Braiding Tubing

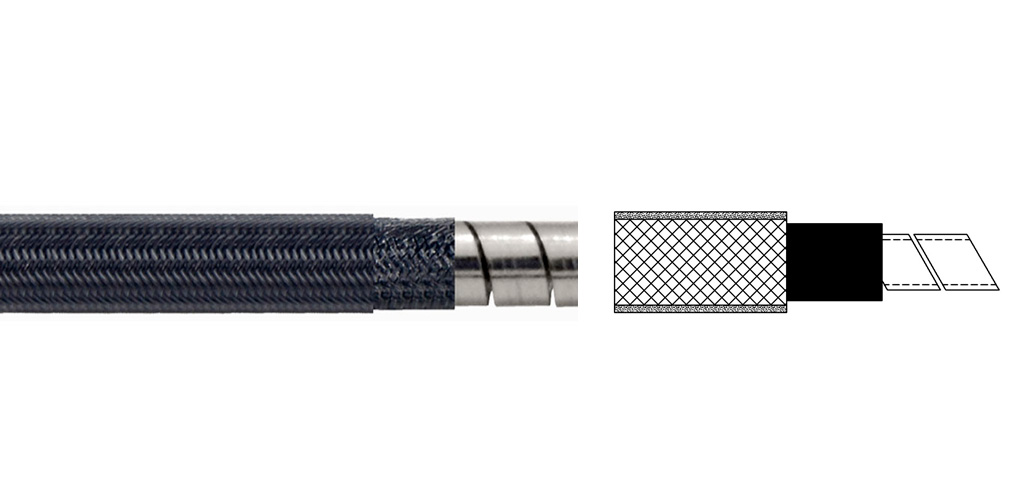

Flexible Electrical Conduit - Tungsten Braiding High Abrasion Resistance Series (EC-UWB), is specially developed for the industrial endoscope check executed in small spaces, more corners and critical environments. It consists of stainless steel mono coil tube and one layer of tungsten steel braiding featuring high abrasion and high temperature resistance. For water and dust proof, a layer of PU jacket can be coated between the mono coil tube and tungsten steel braiding. Integrating this wire protection tubing to the structure of industrial endoscope will make it fully adapt the examination carrying out in the pipeline or equipment space with high temperature and humidity, dusty, uneven & coarse, narrow & complicated conditions.
Applicable for the detail inspection of aerospace industry, auto industry, petrochemical industry, power plant, die casting products, etc..
Feature
-
Material:
Stainless Steel Mono Coil Tube + PU Jacket + Tungsten Braiding -
Temperature Range：
-20℃~+80℃ -
IP Rating
IP 66 -
Flexibility：
Medium (Rebound Type) -
Tensile Strength：
High
Parameter
| Part Number | ID (mm) | OD w/Braiding (mm) | Weight/Meter (g) | Package/Roll (m) |
|---|---|---|---|---|
| EC-018028-UWB | 1.8±0.1 | 2.8±0.15 | 15.2 | 200 |
| EC-019028-UWB | 1.9±0.1 | 2.8±0.15 | 15.7 | 200 |
| EC-029039-UWB | 2.9±0.1 | 3.9±0.15 | 24 | 200 |
| EC-040055-UWB | 4.0±0.1 | 5.5±0.15 | - | 200 |
| EC-043058-UWB | 4.3±0.1 | 5.8±0.15 | - | 200 |
| EC-057072-UWB | 5.7±0.1 | 7.2±0.15 | - | 200 |
| EC-063078-UWB | 6.3±0.1 | 7.8±0.15 | - | 200 |
