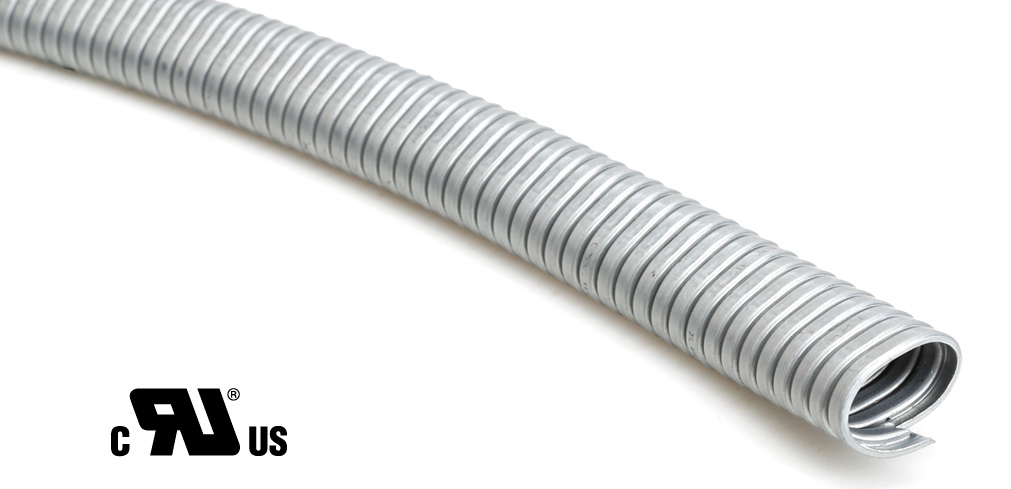

Flexible Oval Steel Conduit (For office furniture and partitions)
XPO series, flexible oval steel conduit is manufactured with hot dip galvanized steel strip by continuous wound to square-lock profile. The material is complaint with RoHS standard and corrosion resistance. Special-shaped square-lock profile provides particular flexibility and mechanical strength. Flexible oval steel conduit is compliant with UL1 standard and approved by UL laboratory with certificate. Oval shape conduit body and its special feature of compressed "U" bend are benefit for the wiring in narrow spaces. Meanwhile, it is also tensile resistance and anti-press that offers comprehensive protection to whole wire system.
Applicable for the wire protection among office furniture, work station and inside the partition.
Feature
-
Material:
Galvanized Steel (Oval) -
Temperature Range:
-50℃~+350℃ -
IP Rating:
IP 40 -
Flexibility:
High -
RoHS Compliance:
Yes -
Certificate:
cURus (File No.：E238089)
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Certificate | Mated With | ||
|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Height | Width | ||||||
| - | 9/16 | XPO-9/16 | 9.58~10.69 | 16.80~17.93 | 13.57~14.67 | 21.19~22.29 | 55 |  | - |
| - | 5/8 | XPO-5/8 | 9.70~10.81 | 19.37~20.47 | 13.70~14.80 | 23.60~24.70 | 60 | |  |
| 21 | 3/4 | XPO-3/4 | 10.73~12.13 | 23.30~24.71 | 14.92~16.33 | 27.49~28.90 | 65 | | - |
* Length is offered as request and package will be defined accordingly.
