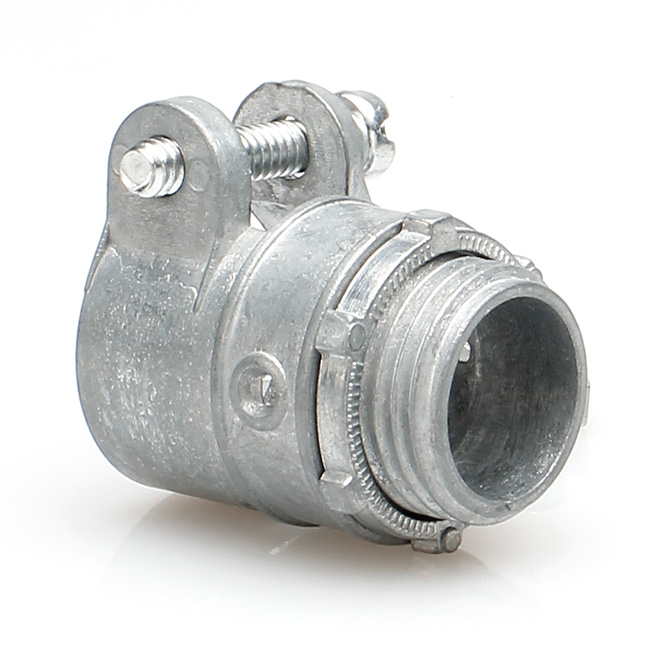

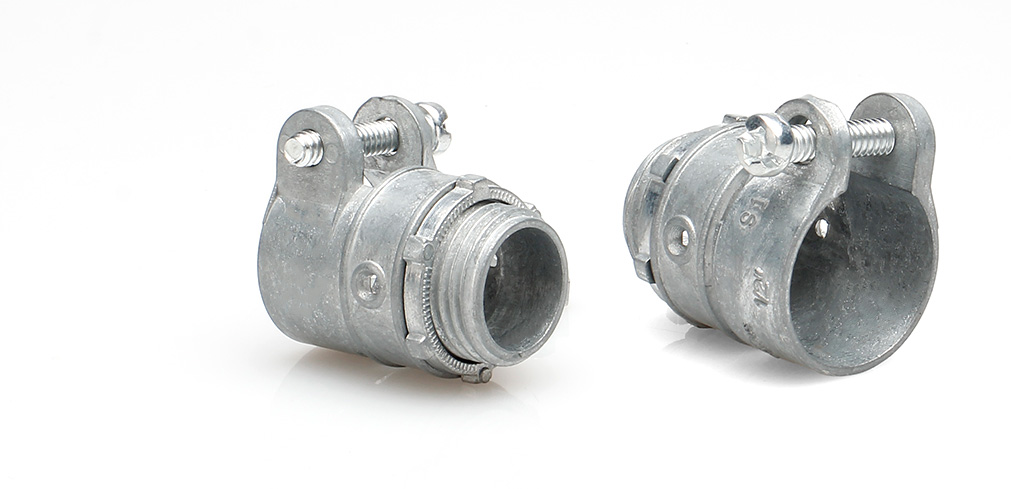

Bx-Flex Conduit Fitting, Straight Squeeze
Bx-Flex Conduit Fitting, Straight Squeeze, S25 series. The metal fittings are applied on the relay or end point of wiring system to connect metal conduits, junction box or enclosure for wiring extension and protection. The body is made of zinc alloy with RoHS compliance. The fitting is fixed to the knockouts of junction box or tapped entries by locknut with external NPS thread system and connected with metal flexible conduit by tightening the rings with two screws. This series of fitting is proposed to fit with metal flexible conduit series PRWG and PRWA.
Feature
-
Material:
Zinc Alloy -
Temperature Range:
-50℃~+200℃ -
IP Rating:
IP 40 -
Surface Finish :
Chromate, other treatments are available by consult. -
RoHS Compliance:
Yes -
Certificate :
CE
Parameter
| Series No. | Part Number | Product Photo | NPS Thread (Inch) | Conduit Size (Inch) | Package/Box (Pcs) | Weight/Box (Kg) | Mated With |
|---|---|---|---|---|---|---|---|
| S25 | S251-3/8 |  | 1/2 | 3/8 | 500 | 12.5 |  |
| S25 | S252-1/2 | | 1/2 | 1/2 | 400 | 11.4 | |
| S25 | S253-3/4 | | 3/4 | 3/4 | 300 | 11.4 | |
| S25 | S254-1 | | 1 | 1 | 200 | 10.6 | |
| S25 | S255-1-1/4 | | 1-1/4 | 1-1/4 | 160 | 14.2 | |
| S25 | S256-1-1/2 | | 1-1/2 | 1-1/2 | 120 | 14.5 | |
| S25 | S257-2 | | 2 | 2 | 80 | 13 | |
| S25 | S258-2-1/2 | | 2-1/2 | 2-1/2 | 24 | 9.1 | |
| S25 | S259-3 | | 3 | 3 | 15 | 7.4 | |
| S25 | S2510-4 | | 4 | 4 | 10 | 7.7 | |
