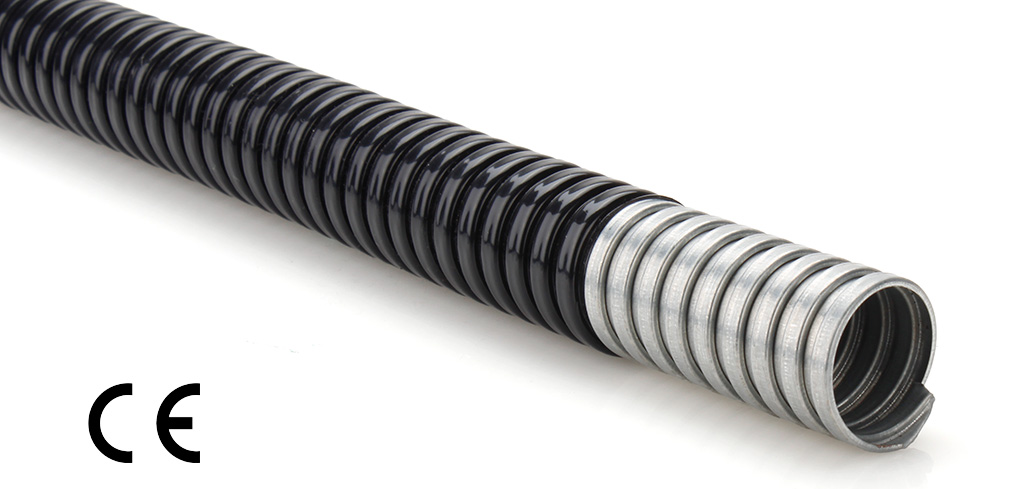

Flexible Metal Conduit, Square-lock Gal, LSZH (Low Smoke Zero Halogen) Jacket
Waterproof Flexible Metal Conduit, LSZH Flexible Conduit - PAG13LSZH series consists of galvanized steel square-lock flexible conduit and LSZH watertight jacket. All materials are compliant with RoHS standard. This series of flexible conduit features with high mechanical characteristics, watertight, corrosion resistant and environmental protection and meets with IEC 61386 standards. Low toxicity and low smoke offer the benefit to be applied in the poor ventilation environments or confined space for wire or cable protection. Recommend to have complete protection efficiency for whole wiring system by adopting fitting series AZ01, AZ05, AZ09, AZ11, AZ60~AZ63.
Widely used in Public buildings, Health Facility, Rail / Transit, Tunnel, etc.
Feature
-
Material:
Galvanized Steel +LSZH (Low Smoke Zero Halogen) Jacket -
Profile：
Square-lock -
Temperature Range :
-30℃~+80℃ -
IP Rating :
IP 40 (Fit with connector series: AZ01, AZ05, AZ62)
IP 64 (Fit with connector series: AZ09, AZ11, AZ60, AZ61 & AZ63) -
Jacket Color :
Black -
Flexibility :
High (≤ 2") -
Fire Retardant :
No -
UV Resistance :
Yes -
Tensile Resistance :
500N -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PAG13LSZH-10 | 8.0 | 10.8 | 30 | 50 | 300*300*110 |  | - |
| 12 | 5/16 | PAG13LSZH-12 | 10.3 | 14.0 | 35 | 50 | 300*300*200 | |  |
| 16 | 3/8 | PAG13LSZH-16 | 12.6 | 16.6 | 40 | 50 | 370*370*150 | | |
| 20 | 1/2 | PAG13LSZH-20 | 16.1 | 20.7 | 45 | 50 | 430*430*200 | | |
| 25 | 3/4 | PAG13LSZH-25 | 21.1 | 25.7 | 50 | 50 | 500*500*150 | | |
| 32 | 1 | PAG13LSZH-32 | 26.8 | 32.7 | 55 | 25 | 500*500*300 | | |
| 40 | 1-1/4 | PAG13LSZH-40 | 35.4 | 42.2 | 70 | 25 | 550*550*320 | | |
| 50 | 1-1/2 | PAG13LSZH-50 | 40.3 | 46.9 | 100 | 25 | 550*550*350 | | |
| 63 | 2 | PAG13LSZH-63 | 51.6 | 58.6 | 130 | 15 | 550*550*300 | | |
