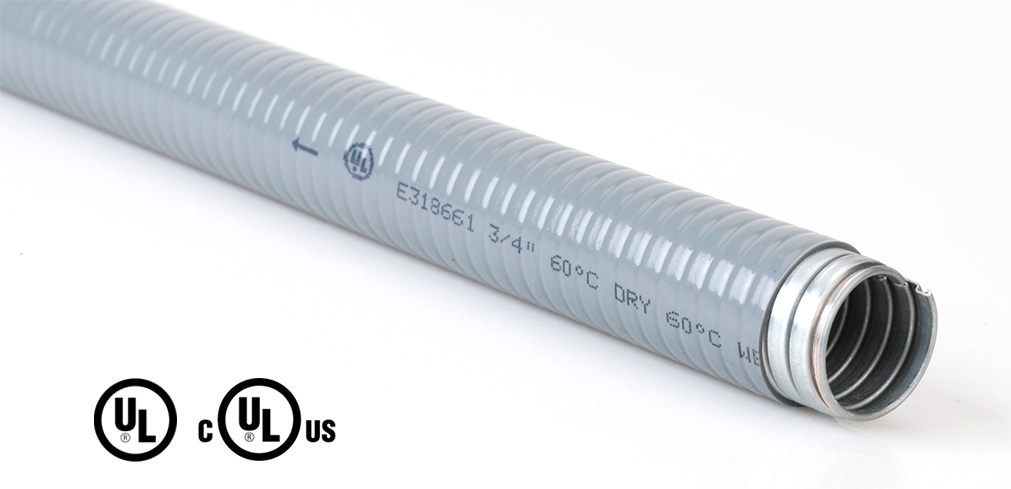

Liquid Tight Flexible Metal Conduit (UL Listed)
Liquid Tight Flexible Metal Conduit (LFMC) - PULTG Series is applicable for the protection of circuit with 600 volts or lower in locations where UL certificate is required, including commercial buildings, industrial/power plant, shipyards, marine or boat, computer rooms and etc.
Suitable for use in Hazardous (Classified) Locations :
NEC Article 501.10 (B) (2) & 501.30 (B) Class I Div. 2
NEC Article 502.10 (A) (2) & 502.30 (B) Class II Div. 1; 502.10 (B) (2) Class II Div. 2
NEC Article 503.10 (A) (2) & 503.30 (B) Class III Div. 1; 503.10 (A) (2) Class III Div. 2
Feature
-
Material:
Galvanized Steel + PVC Jacket -
Temperature Range:
-10℃~+105℃ Dry, 60℃ Wet, 70℃ Oil
-10℃~+80℃ Dry, 60℃ Wet, 70℃ Oil
-10℃~+60℃ Dry, 60℃ Wet, 60℃ Oil -
IP Rating:
IP 40 (Fit with connector series: S52)
IP 66 (Fit with connector series: S50, S51 & S53) -
Flexibility:
Medium -
Fire Retardant :
Self-extinguishing -
Standard:
ANSI/UL 360, CSA 22.2 No. 56-17 -
Certificate:
UL, cULus (for 60 Dry, 60 Wet, 60 Oil only)
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Package/Roll (ft/m) | Measurement (LxWxH mm) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|---|---|
| 12 | 3/8 | PULTG1-3/8 | 12.29~12.80 | 17.50~18.00 | 60.8 | 100 / 30.5 | 440*440*140 |  |  |
| 16 | 1/2 | PULTG1-1/2 | 15.80~16.31 | 20.80~21.30 | 92.55 | 100 / 30.5 | 440*440*160 | | |
| 21 | 3/4 | PULTG1-3/4 | 20.83~21.34 | 25.20~26.70 | 117.95 | 100 / 30.5 | 500*500*180 | | |
| 27 | 1 | PULTG1-1 | 26.44~27.08 | 32.80~33.40 | 175.1 | 100 / 30.5 | 600*600*300 | | |
| 35 | 1-1/4 | PULTG1-1-1/4 | 35.05~35.81 | 41.40~42.20 | 213.2 | 50 / 15.3 | 750*750*130 | | |
| 41 | 1-1/2 | PULTG2-1-1/2 | 40.01~40.64 | 47.40~48.30 | 238.6 | 50 / 15.3 | 750*750*250 | | |
| 53 | 2 | PULTG2-2 | 51.31~51.94 | 59.40~60.30 | 292.6 | 25 / 7.6 | 900*900*120 | | |
| 63 | 2-1/2 | PULTG2-2-1/2 | 62.99~63.63 | 72.10~73.00 | 381.3 | 25 / 7.6 | 1000*1000*150 | | |
| 78 | 3 | PULTG2-3 | 77.98~78.74 | 87.90~88.90 | 454.5 | 25 / 7.6 | 1100*1100*180 | | |
| 91 | 3-1/2 | PULTG2-3-1/2 | 88.90~89.92 | 100.6~101.6 | 518 | 25 / 7.6 | 1125*1125*230 | | |
| 103 | 4 | PULTG2-4 | 101.60~102.62 | 113.30~114.30 | 619.6 | 25 / 7.6 | 1125*1125*230 | | |
