CSA Liquid Tight Flexible Metal Conduit

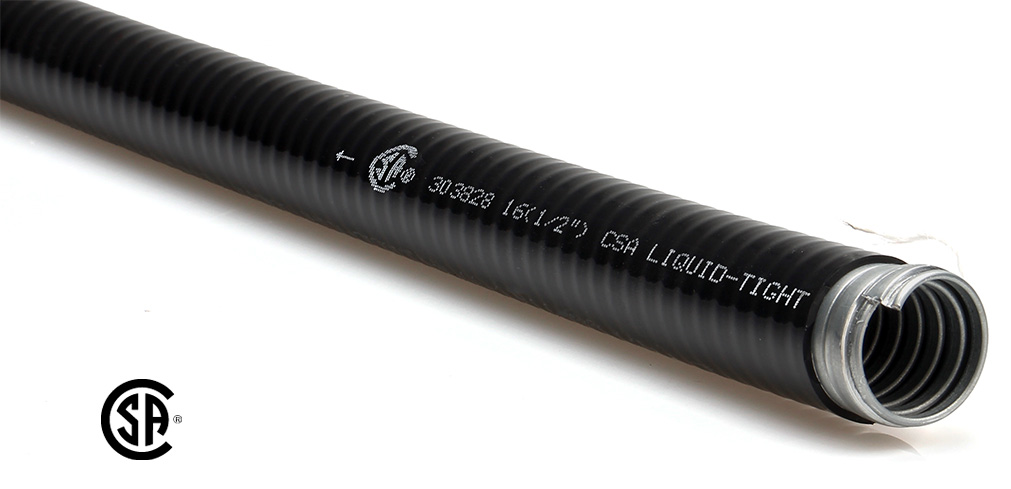

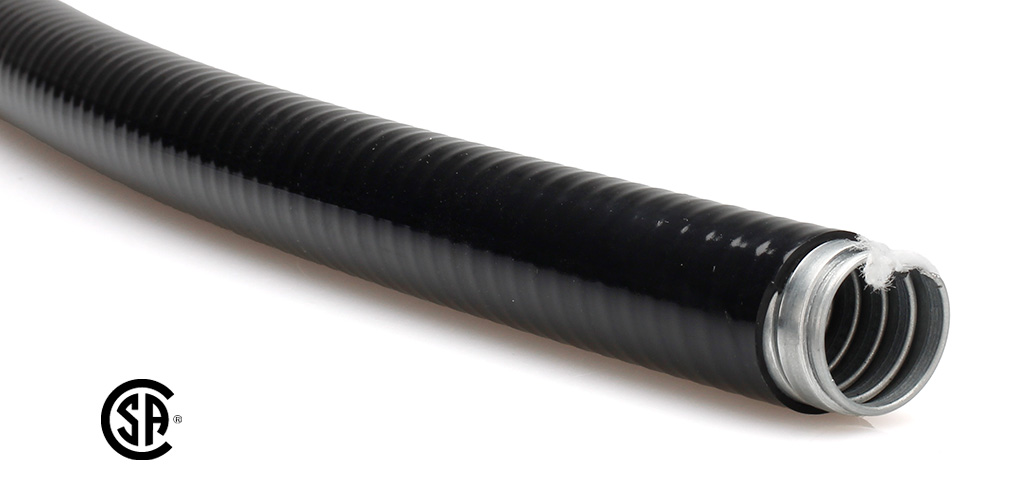

CSA Liquid Tight Metal Flexible Conduit (LFMC) - PCULTG series is certified with the standard CSA C22.2 No.56, specially applied in Canada market, for trade size from 3/8" to 2". PCULTG series consists of metal flexible conduit made by continuous wound galvanized steel strip and PVC jacket featuring with waterproof and fire retardant level FT4. All materials are compliant with RoHS standard and the galvanized steel strip is also corrosion resistant. The superior mechanical performance of flexible metal conduit and reliable physical & chemical characteristics of plastic jacket answer to the CSA C22.2 No.56 standard. That gives the advantage for this series of liquid tight metal flexible conduit to be used in occasions, no matter indoor or outdoor, in lower temperatures or severe conditions. The best efficiency of waterproof for whole wiring system is available to achieve by adopting the liquid tight fitting series S50 to S53.
Widely used in refinery, petrochemical plant, steelworks and other environments with severe conditions wiring protection.
Feature
-
Material:
Galvanized Steel + Cord Filler + PVC Jacket
- 3/8" to 1-1/4", square lock design with cord filler
- 1-1/2" to 2", fully interlocked design -
Temperature Range:
-40℃~+75℃ (60℃) Dry, 60℃ Wet, 75℃ (60℃) Oil -
IP Rating:
IP 40 (Fit with connector series: S52)
IP 66 (Fit with connector series: S50, S51 & S53) -
Jacket Color :
Black (Standard), other colors are available by consult. -
Flexibility :
Medium -
Fire Retardant :
FT4 -
UV Resistance :
Yes -
RoHS Compliance :
Yes -
Suitable for use in Hazardous (Classified) Locations :
Section 18-152(1)(h) Zone 2
Section 18-192(3)(a) Zone 20
Section 18-202(4)(a) Zone 21
Section 18-252(1)(h) Zone 22
Section J18-204(4)(b) Class II, Division 1
Section J18-254(1)(h) Class II, Division 2
Section J18-304(1)(f) Class III, Division 1
Section J18-354(h) Class III, Division 2 -
Certificate :
CSA, File No. 303828
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Package/Roll (ft/m) | Measurement (LxWxH mm) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|---|---|
| 12 | 3/8 | PCULTG1-3/8 | 12.29~12.80 | 17.50~18.00 | 51 | 100 / 30.5 | 440*440*140 |  |  |
| 16 | 1/2 | PCULTG1-1/2 | 15.80~16.31 | 20.80~21.30 | 76 | 100 / 30.5 | 440*440*160 | | |
| 21 | 3/4 | PCULTG1-3/4 | 20.83~21.34 | 25.20~26.70 | 102 | 100 / 30.5 | 500*500*180 | | |
| 27 | 1 | PCULTG1-1 | 26.44~27.08 | 32.80~33.40 | 127 | 100 / 30.5 | 600*600*300 | | |
| 35 | 1-1/4 | PCULTG1-1-1/4 | 35.05~35.81 | 41.40~42.20 | 159 | 50 / 15.3 | 750*750*130 | | |
| 41 | 1-1/2 | PCULTG2-1-1/2 | 40.01~40.64 | 47.40~48.30 | 191 | 50 / 15.3 | 750*750*250 | | |
| 53 | 2 | PCULTG2-2 | 51.31~51.94 | 59.40~60.30 | 254 | 25 / 7.6 | 900*900*120 | | |
