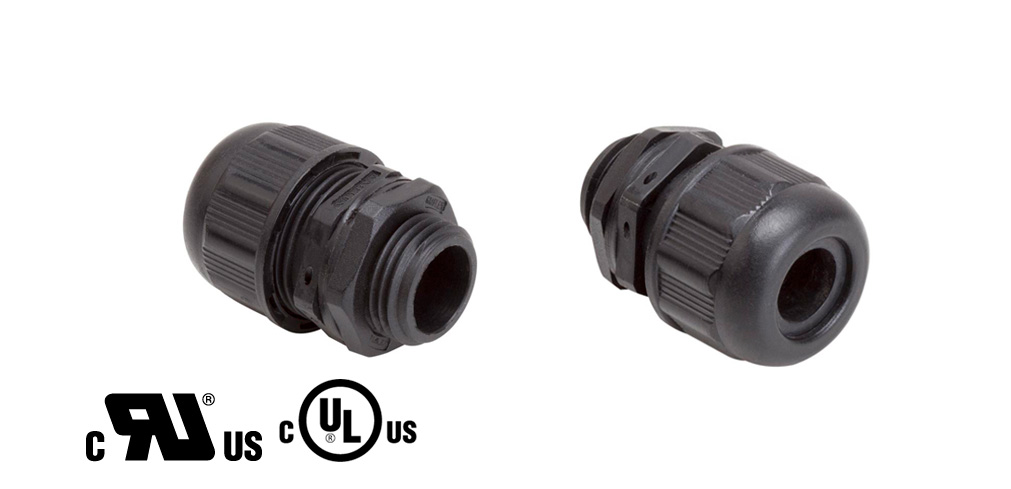

Nylon Cable Gland, Straight Type (1/2"~2")
Nonmetallic Nylon Cable gland, Straight Type - CG50 Series, is applied specially to fix the cable at terminals to connect firmly with equipment, devices or distribution box. Because of the elastic claw, the cable can be fixed by tightening the nut and it also allows the gland to adopt a certain OD range of cable. It is made of Polyamide (Nylon) offering features of attrition resistance, fire retardant, resist low temperature and UV. This series of cable gland is available to apply in the controlled or rough environments.
Feature
-
Material：
PA66 -
Temperature Range :
-40℃~+120℃ -
Flammability Rating：
UL94 V-2 -
UV Resistance：
F1 -
Environmental Protection：
RoHs Compliance, Halogen Free -
Certificate：
CE
cULus (NPT Thread, File No.: E517079)
cRUus (M Thread, PG Thread, File No.: E517079)
Parameter
NPT Thread
| Cable Size (min) | Cable Size (max) | NPT Thread | Part Number | Package/Box (pcs) | Weight/Box (kg) | Certificate |
|---|---|---|---|---|---|---|
| 4 | 10 | 1/2" | CG50-21NPT1/2PA-10 | 460 | 5.5 |  |
| 10 | 14 | 1/2" | CG50-21NPT1/2PA-14 | 400 | 7.6 | |
| 14 | 18 | 3/4" | CG50-21NPT3/4PA-18 | 360 | 9.7 | |
| 18 | 25 | 1" | CG50-21NPT1PA-25 | 300 | 9.9 | |
| 25 | 32 | 1-1/4" | CG50-21NPT1-1/4PA-32 | 160 | 8.7 | |
| 32 | 38 | 1-1/2" | CG50-21NPT1-1/2PA-38 | 80 | 6.6 | |
| 38 | 44 | 2" | CG50-21NPT2PA-44 | 60 | 5.7 | |
M Thread
| Cable Size (min) | Cable Size (max) | M Thread | Part Number | Package/Box (pcs) | Weight/Box (kg) | Certificate |
|---|---|---|---|---|---|---|
| 4 | 10 | M16 | CG50-21M16PA-10 | 460 | 5.5 |  |
| 10 | 14 | M20 | CG50-21M20PA-14 | 400 | 7.6 | |
| 14 | 18 | M25 | CG50-21M25PA-18 | 360 | 9.7 | |
| 18 | 25 | M32 | CG50-21M32PA-25 | 300 | 9.9 | |
| 25 | 32 | M40 | CG50-21M40PA-32 | 160 | 8.7 | |
| 32 | 38 | M50 | CG50-21M50PA-38 | 80 | 6.6 | |
| 38 | 44 | M63 | CG50-21M63PA-44 | 60 | 5.7 | |
PG Thread
| Cable Size (min) | Cable Size (max) | PG Thread | Part Number | Package/Box (pcs) | Weight/Box (kg) | Certificate |
|---|---|---|---|---|---|---|
| 4 | 10 | PG11 | CG50-21PG11PA-10 | 460 | 5.5 | |
| 10 | 14 | PG16 | CG50-21PG16PA-14 | 400 | 7.6 | |
| 14 | 18 | PG21 | CG50-21PG21PA-18 | 360 | 9.7 | |
| 18 | 25 | PG29 | CG50-21PG29PA-25 | 300 | 9.9 | |
| 25 | 32 | PG36 | CG50-21PG36PA-32 | 160 | 8.7 | |
| 32 | 38 | PG42 | CG50-21PG42PA-38 | 80 | 6.6 | |
| 38 | 44 | PG48 | CG50-21PG48PA-44 | 60 | 5.7 | |
