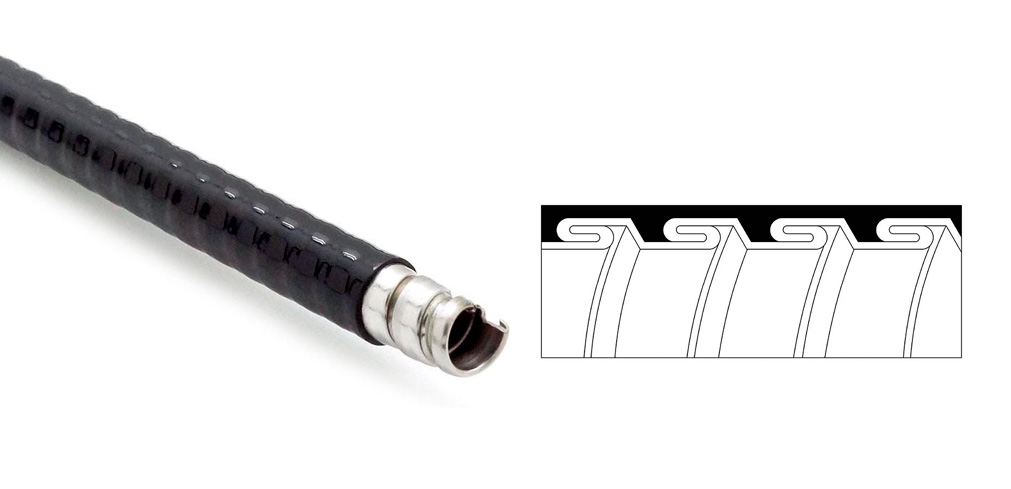

Flexible Electrical Conduit (Anti-static)
The Flexible Electrical Conduit (Anti-static), WP-S2K1 series is especially recommending for the wiring protection of equipment & system that used in potentially explosive environment (offshore platforms, petrochemical plant, mine, flour mill and other places where the explosive gas exists.)
Application: Electrical and non-electrical equipment,machinery and industry devices in all potentially explosive environment as well as the control devices and equipment in non-explosive environment to secure the safely of equipment and instrument or maintain the normal operation.
Feature
-
Material:
Stainless Steel Interlocked + Anti-static Jacket -
Temperature Range：
-20℃~+80℃, -40℃~+105℃ -
IP Rating
IP 66 -
Jacket Color：
Black/White (Standard), other colors are available by consult. -
Flexibility :
High -
Fire Retardant :
Self-extinguishing -
UV Resistance :
By ordering -
RoHS Compliance :
Yes
Parameter
| Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Tensile Strength (kg) | Package/Roll (m) |
|---|---|---|---|---|---|
| P040070S2K1 | 4.0±0.2 | 7.0±0.25 | ≤45 | ≥100 | 200 |
| P046080S2K1 | 4.6±0.2 | 8.0±0.25 | ≤50 | ≥100 | 200 |
| P050080S2K1 | 5.0±0.2 | 8.0±0.25 | ≤50 | ≥100 | 200 |
| P054095S2K1 | 5.4±0.2 | 9.5±0.25 | ≤52 | ≥120 | 100 |
| P059100S2K1 | 5.9±0.2 | 10.0±0.25 | ≤57 | ≥120 | 100 |
| P066100S2K1 | 6.6±0.2 | 10.0±0.25 | ≤55 | ≥120 | 100 |
| P095150S2K1 | 9.5±0.2 | 15.0±0.25 | ≤75 | ≥140 | 100 |
| P100150S2K1 | 10.0±0.2 | 15.0±0.25 | ≤75 | ≥140 | 100 |
| P125177S2K1 | 12.5±0.3 | 17.7±0.35 | ≤95 | ≥140 | 50 |
| P161213S2K1 | 16.1±0.3 | 21.3±0.35 | ≤120 | ≥200 | 50 |
