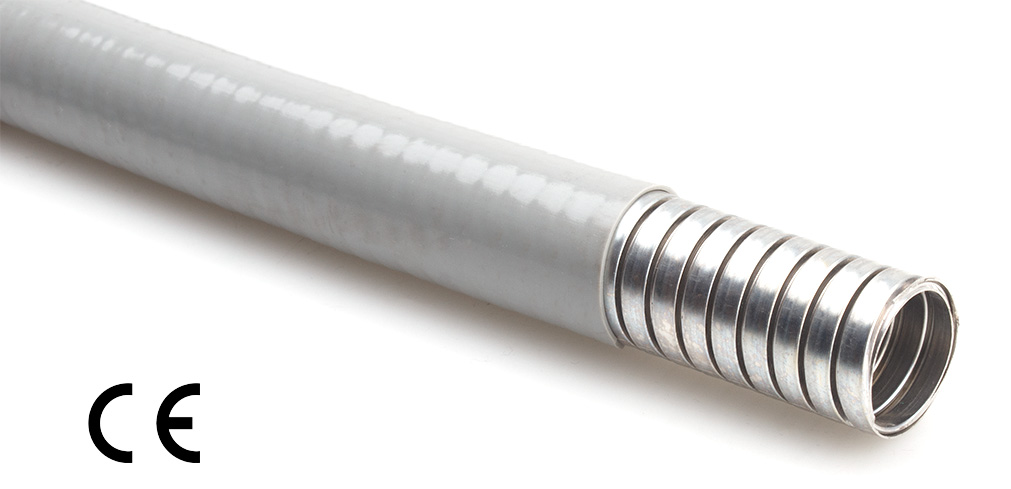

Reinforced Type - Flexible Metal Conduit, Interlocked SUS, PVC Jacket
This "Reinforced Type" product - PS2F1 series has been reformed to be much tighter on profile.That has enhanced the protective effectiveness of the metal flexible conduit. The upgrade performances of tensile resistance, impact resistance & anti damage fulfill the application requirements for harsh or severe environments. Recommend to have complete protection efficiency for whole wiring system by adopting fitting series S50 and S53.
Feature
-
Material:
Stainless Steel + PVC Jacket -
Profile：
Interlocked -
Temperature Range :
-20℃~+90℃ -
IP Rating :
IP 66 (Fit with connector series: S50 & S53)
-
Jacket Color :
Black (Standard), other colors are available by consult. -
Flexibility :
Medium (≤ 2") -
Fire Retardant :
Self-extinguishing -
UV Resistance :
Yes (Black) -
Tensile Resistance :
> 1000N -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Package/Roll (m) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|---|
| 10 | 1/4 | P095150S2F1 | 9.5 | 15.0 | 60 | 50 |  |  |
| 12 | 3/8 | P125177S2F1 | 12.5 | 17.7 | 100 | 50 | | |
| 16 | 1/2 | P161213S2F1 | 16.1 | 21.3 | 120 | 50 | | |
| 21 | 3/4 | P208267S2F1 | 20.8 | 26.7 | 140 | 50 | | |
| 27 | 1 | P260330S2F1 | 26.0 | 33.0 | 180 | 25 | | |
| 35 | 1-1/4 | P350432S2F1 | 35.0 | 43.2 | 220 | 25 | | |
| 41 | 1-1/2 | P400487S2F1 | 40.0 | 48.7 | 270 | 15 | | |
| 53 | 2 | P510594S2F1 | 51.0 | 59.4 | 310 | 10 | | |
