Abrasion & Dust Proof, Braided Flexible Metal Conduit, Square-lock SUS, PVC Jacket, Stainless Steel Braiding

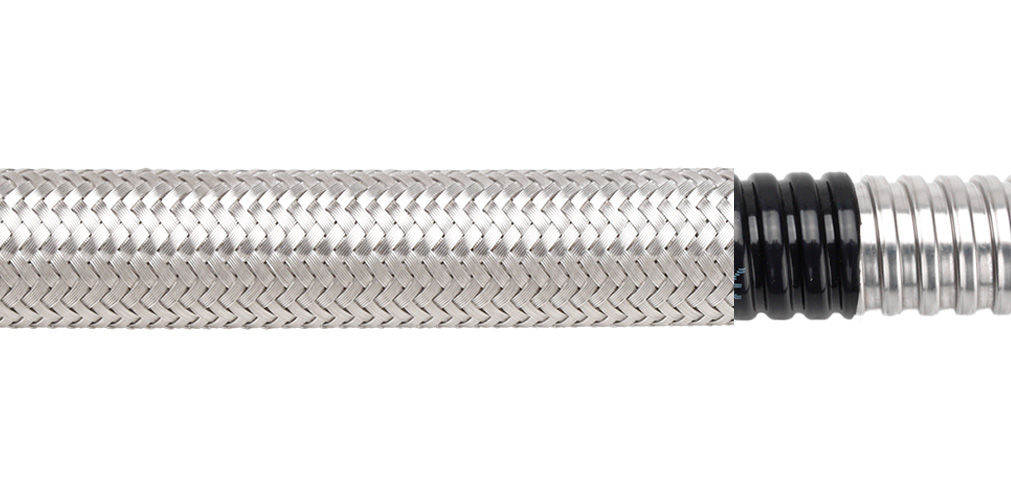

Abrasion & Dust Proof, Braided Flexible Metal Conduit-EMC shielding, PES13PVCSB series is manufactured with stainless steel strip by continuous wound in square-lock profile coated by PVC jacket and then shielded with stainless steel braiding. This is an upgrade design basing on the EMC shielding series. The conduit sizes meet with the system normally used in Europe market. This series of flexible conduit is in excellent mechanical characteristics and water & dust seal. The braiding brings further abrasion resistance. Basic level of EMC shielding is available when installed in the environment with possible electromagnetic interference. The PVC jacket is also fire retardant and belongs to low fire hazard product. The material is RoHS approved as well to answer the demand of environmental protection product.
Feature
-
Material:
Stainless Steel + PVC Jacket + Stainless Steel Braiding -
Profile：
Square-lock -
Temperature Range :
-25℃~+90℃, -40℃~+105℃ -
IP Rating :
IP 40 (Fit with BGS50 & BGS53 connector series) -
Flexibility :
High -
EMC Shielding :
Basic -
RoHS Compliance :
Yes
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Braiding (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PES13PVCSB-10 | 6.8 | 11.1 | 35 | 25 | 320*320*120 |  |
| 12 | 5/16 | PES13PVCSB-12 | 10.3 | 15.1 | 65 | 25 | 320*320*210 | |
| 16 | 3/8 | PES13PVCSB-16 | 13.0 | 18.1 | 75 | 25 | 400*400*160 | |
| 20 | 1/2 | PES13PVCSB-20 | 16.9 | 22.6 | 75 | 25 | 450*450*210 | |
| 25 | 3/4 | PES13PVCSB-25 | 21.4 | 27.1 | 75 | 25 | 530*530*160 | |
| 32 | 1 | PES13PVCSB-32 | 28.1 | 35.1 | 105 | 10 | 530*530*320 | |
| 40 | 1-1/4 | PES13PVCSB-40 | 37.7 | 46.5 | 125 | 10 | 550*550*500 | |
| 50 | 1-1/2 | PES13PVCSB-50 | 48.4 | 57.0 | 175 | 10 | 550*550*550 | |
| 63 | 2 | PES13PVCSB-63 | 57.5 | 66.5 | 205 | 10 | 550*550*600 | |
