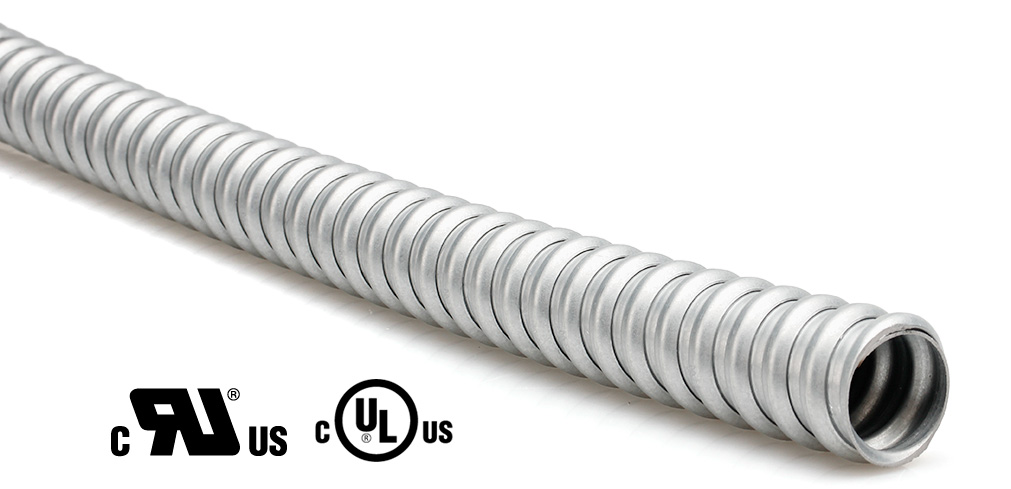

Galvanized Steel Flexible Metal Conduit (Reduced Wall/Greenfield)
Galvanized Steel Flexible Conduit PRWG series is UL listed / recognized for full trade size. The performances of flexibility, pull and impact resistance completely meet with UL1 standard. Wiring protection in/on building, office, light fixture, machines, elevator, data center and etc., where demand UL listed and low fire hazard. The Extra Reduced Wall type is especially used for office OA system or above ceiling.
The size of 5/16" and 9/16" (PXRWG series), are especially recommended for the wire protection in limit spaces or for light fixtures. The small size and bending radius offer advantage to satisfy the wiring environment of narrow space and corners.
Feature
-
Material:
Galvanized Steel (Reduced Wall) -
Temperature Range:
-50℃~+350℃ -
IP Rating:
IP 40 -
Flexibility:
High -
RoHS Compliance:
Yes -
Standard:
ANSI/UL 1, CSA 22.2 No. 56 -
Certificate:
UL, cULus, cURus (File No.: E238089)
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (ft/m) | Measurement (LxWxH mm) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|---|---|
| - | 5/16 | PXRWG-5/16 | 7.92~8.60 | 11.94~12.95 | 50 | 100 / 30.5 | 320*320*150 |  |  |
| 12 | 3/8 | PRWG-3/8 | 9.52~9.96 | 14.22~15.49 | 50 | 100 / 30.5 | 320*320*150 |  |  |
| 16 | 1/2 | PRWG-1/2 | 15.88~16.38 | 21.84~23.37 | 75 | 100 / 30.5 | 380*380*150 |  | |
| - | 9/16 | PXRWG-9/16 | 13.70~14.40 | 18.00~18.80 | 75 | 100 / 30.5 | - | | |
| 21 | 3/4 | PRWG-3/4 | 20.62~21.21 | 26.54~28.07 | 100 | 100 / 30.5 | 450*450*180 | | |
| 27 | 1 | PRWG-1 | 25.40~26.42 | 33.02~35.05 | 125 | 100 / 30.5 | 550*550*220 | | |
| 35 | 1-1/4 | PRWG-1-1/4 | 31.75~33.02 | 39.37~41.40 | 160 | 50 / 15.3 | 500*500*180 | | |
| 41 | 1-1/2 | PRWG-1-1/2 | 38.10~40.01 | 46.99~49.53 | 190 | 50 / 15.3 | 580*580*200 | | |
| 53 | 2 | PRWG-2 | 50.80~52.83 | 59.69~62.23 | 255 | 25 / 7.6 | 550*550*200 | | |
| 63 | 2-1/2 | PRWG-2-1/2 | > 63.5 | 72.64~77.72 | 320 | 25 / 7.6 | 700*700*200 | | |
| 78 | 3 | PRWG-3 | > 76.2 | 85.34~90.42 | 380 | 25 / 7.6 | 750*750*250 | | |
| 91 | 3-1/2 | PRWG-3-1/2 | > 88.9 | 98.04~103.12 | 445 | 25 / 7.6 | 900*900*300 | | |
| 103 | 4 | PRWG-4 | > 101.6 | 110.74~115.82 | 510 | 25 / 7.6 | 900*900*300 | | |
