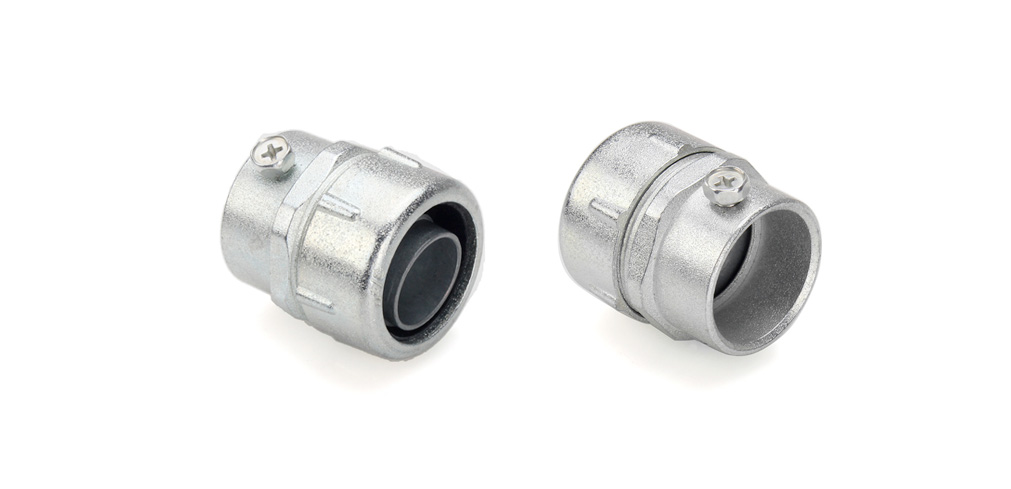

Straight Type, EMT Connector
Straight EMT Connector S52 series is applied on the relay point close to the end of wiring system to switch the EMT to metal flexible conduits for convenient termination and complete wiring protection. The body is made of zinc alloy with RoHS compliance. The fitting is fitted to unthreaded EMT by set screw and connected with metal flexible conduit by a nut. It benefits to apply to indoor or outdoor environments after assembled with the liquid tight metal flexible conduit series PULTG, PCBLTG, PHLTG and PNKLTG.
Feature
-
Material:
Zinc Alloy -
Temperature Range:
-20℃~+90℃ -
IP Rating:
IP 40 (Fit with conduit series: PULTG, PCBLTG, PHLTG & PNKLTG) -
Surface Finish :
Zinc plated, other treatments are available by consult. -
RoHS Compliance :
Yes
Parameter
| Nominal Conduit Size | Nominal Conduit Size | EMT Conduit Size | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Mated With |
|---|---|---|---|---|---|---|
| 12 | 3/8 | 1/2" | S521-3/8 | 300 | 17.8 |  |
| 16 | 1/2 | 1/2" | S522-1/2 | 300 | 18.4 | |
| 21 | 3/4 | 3/4" | S523-3/4 | 240 | 19 | |
| 27 | 1 | 1" | S524-1 | 160 | 18.6 | |
| 35 | 1-1/4 | 1-1/4" | S525-1-1/4 | 80 | 15.4 | |
| 41 | 1-1/2 | 1-1/2" | S526-1-1/2 | 60 | 15.4 | |
| 53 | 2 | 2" | S527-2 | 50 | 19 | |
| 63 | 2-1/2 | 2-1/2" | S528-2-1/2 | 25 | 15.5 | |
| 78 | 3 | 3" | S529-3 | 12 | 10.2 | |
| 103 | 4 | 4" | S5210-4 | 10 | 15 | |
