Non-metallic Mechanical Protection Tubing, NMPT, Standard Type/Certified, PA6 (V0 / V2), EN 45545

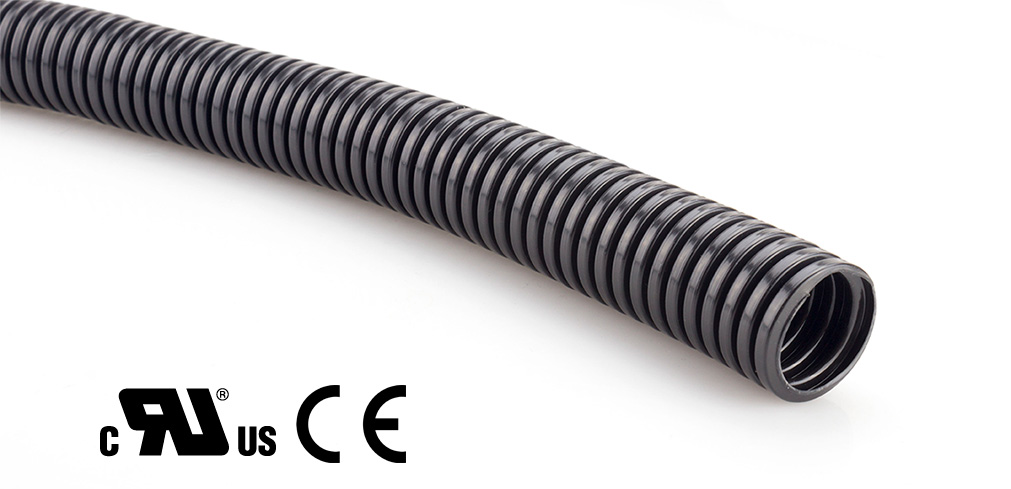

Non-metallic Mechanical Protection Tubing, Nylon Corrugated Flexible Conduit, NMPT - PAFS / PACS Series, is made of Polyamide (PA) in corrugated shape. That makes the tube feature with high mechanical strength, strong toughness, attrition resistance and anti-aging. PAFS / PACS series mate with fitting series FN01~FN04, FN50 & FN53, this series of tubing have been certified by UL & cRUus following UL1696 & CSA C22.2 No. 227.3 standard. Suitable for various mechanical protection. Superior flexibility allows the wiring in narrow or small space to be easy.
This series of flexible conduit also performs excellent long term protection to the wires at constant moving part to further ensure operation efficiency. To establish the protection system resisting water and dust, the nonmetallic mechanical protection tubing is recommended to connect with nylon fitting series of FN01~FN04, FN50 and FN53. Available applications are assorted machines, tunnel, rail / transit, train cabins & its system, etc.
Feature
-
Material:
Nylon 6 (Polyamide 6，PA6) -
Temperature Range:
-40℃~+105℃ -
IP Rating:
IP 66 (Fit with connector series：FN01~FN04)
IP 68 (Fit with connector series：FN50, FN53) -
Flexibility：
High -
Flammability Rating：
UL94 V-0, UL94 V-2 -
UV Resistance：
Yes -
Environmental Protection：
RoHs Compliance, Halogen Free -
Standard :
ANSI/UL 1696, CSA C22.2 No. 227.3, EN 61386-23 -
Certificate :
UL1696 Standard, cURus (File No. E491228), CE and verified with EN-45545-2, EN-45545-3 standard
Parameter
V0 Rating
| Nominal Conduit Size | Nominal Conduit Size | Part Number (V0) | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PAFSV0-10 | 6.45±0.25 | 10.1±0.2 | 25 | 50 | 300*300*100 |  |
| 13 | 5/16 | PAFSV0-13 | 9.45±0.25 | 13.1±0.2 | 30 | 50 | 310*310*120 | |
| 16 | 3/8 | PAFSV0-16 | 11.9±0.25 | 15.9±0.3 | 50 | 50 | 400*400*150 | |
| 21 | 1/2 | PAFSV0-21 | 16.5±0.25 | 21.2±0.25 | 50 | 50 | 470*470*180 | |
| 28 | 3/4 | PAFSV0-28 | 22.9±0.25 | 28.5±0.35 | 50 | 50 | 500*500*300 | |
| 28 | 3/4 | PACSV0-28 | 22.3±0.25 | 28.6±0.35 | 75 | 50 | 500*500*300 | |
| 34 | 1 | PAFSV0-34 | 29.1±0.3 | 34.4±0.3 | 70 | 25 | 550*550*200 | |
| 34 | 1 | PACSV0-34 | 27.9±0.3 | 34.5±0.3 | 90 | 25 | 550*550*200 | |
| 42 | 1-1/4 | PACSV0-42 | 35.2±0.5 | 42.5±0.3 | 100 | 25 | 450*450*280 | |
| 48 | 1-1/2 | PACSV0-48 | 41.2±0.4 | 48.0±0.3 | 110 | 25 | 660*660*200 | |
| 54 | 2 | PACSV0-54 | 47.1±0.4 | 54.5±0.3 | 125 | 25 | 770*770*280 | |
V2 Rating
| Nominal Conduit Size | Nominal Conduit Size | Part Number (V2) | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PAFSV2-10 | 6.45±0.25 | 10.1±0.2 | 25 | 50 | 300*300*100 | |
| 13 | 5/16 | PAFSV2-13 | 9.45±0.25 | 13.1±0.2 | 30 | 50 | 310*310*120 | |
| 16 | 3/8 | PAFSV2-16 | 11.9±0.25 | 15.9±0.3 | 50 | 50 | 400*400*150 | |
| 21 | 1/2 | PAFSV2-21 | 16.5±0.25 | 21.2±0.25 | 50 | 50 | 470*470*180 | |
| 28 | 3/4 | PAFSV2-28 | 22.9±0.25 | 28.5±0.35 | 50 | 50 | 500*500*300 | |
| 28 | 3/4 | PACSV2-28 | 22.3±0.25 | 28.6±0.35 | 75 | 50 | 500*500*300 | |
| 34 | 1 | PAFSV2-34 | 29.1±0.3 | 34.4±0.3 | 70 | 25 | 550*550*200 | |
| 34 | 1 | PACSV2-34 | 27.9±0.3 | 34.5±0.3 | 90 | 25 | 550*550*200 | |
| 42 | 1-1/4 | PACSV2-42 | 35.2±0.5 | 42.5±0.3 | 100 | 25 | 450*450*280 | |
| 48 | 1-1/2 | PACSV2-48 | 41.2±0.4 | 48.0±0.3 | 110 | 25 | 660*660*200 | |
| 54 | 2 | PACSV2-54 | 47.1±0.4 | 54.5±0.3 | 125 | 25 | 770*770*280 | |
