Non-metallic Mechanical Protection Tubing, Double Split, PA6, EN 45545

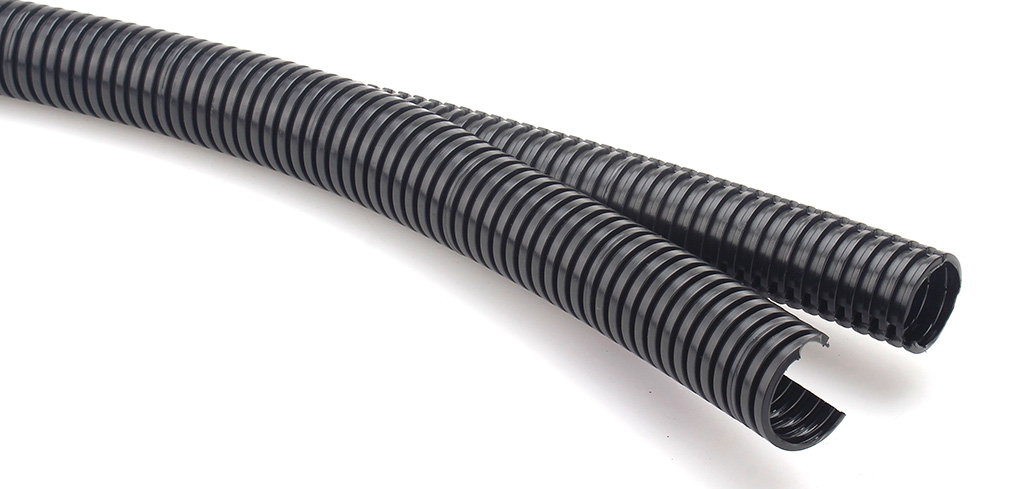

Non-metallic Mechanical Protection Tubing, Split Type - PAWS Series, is processed by UL and CE certified Nylon corrugated tubing. Superior flexibility allows the wiring in narrow or small space to be easy.
This series of mechanical protection tubing is made double slit on conduit body for the convenience of wire increase or remove. That not only enhances the replacement speed but also further decrease the loss of stop operation. The slit type nonmetallic mechanical protection tubing is recommended to connect with nylon fitting series of FN01~FN04, FN50 and FN53. The application is wiring protection of assorted machines, rail transit system and etc.
Feature
-
Material:
Polyamide 6 (Nylon 6, PA6) -
Temperature Range:
-40℃~+105℃ -
IP Rating：
IP 40 (Fit with FN01~FN04 connector series: Nominal Conduit Size 16~54, exclude 48)
IP 40 (Fit with FN50, FN53 connector series: Nominal Conduit Size 48) -
Flexibility:
High -
Flammability Rating：
UL94 V-0, UL94 V-2 (Option: Non Flame Retardant) -
UV Resistance：
Yes (Option: Non UV Resistance) -
Environmental Protection：
RoHs Compliance, Halogen Free -
Certificate：
Verified with EN-45545-2, EN-45545-3 standard
Parameter
V0 Rating
| Nominal Conduit Size | Nominal Conduit Size | Part Number (V0) | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 16 | 3/8 | PAWSV0-16 | 10.2±0.25 | 15.8±0.2 | 50 | 50 | 500*500*150 |  |
| 21 | 1/2 | PAWSV0-21 | 15.6±0.25 | 21.2±0.2 | 50 | 50 | 588*588*180 | |
| 28 | 3/4 | PAWSV0-28 | 21.0±0.25 | 28.5±0.3 | 50 | 50 | 625*625*300 | |
| 34 | 1 | PAWSV0-34 | 27.0±0.25 | 34.5±0.25 | 70 | 25 | 688*688*200 | |
| 42 | 1-1/4 | PAWSV0-42 | 33.5±0.25 | 42.5±0.35 | 100 | 25 | 578*578*280 | |
V2 Rating
| Nominal Conduit Size | Nominal Conduit Size | Part Number (V2) | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 16 | 3/8 | PAWSV2-16 | 10.2±0.25 | 15.8±0.2 | 50 | 50 | 500*500*150 | |
| 21 | 1/2 | PAWSV2-21 | 15.6±0.25 | 21.2±0.2 | 50 | 50 | 588*588*180 | |
| 28 | 3/4 | PAWSV2-28 | 21.0±0.25 | 28.5±0.3 | 50 | 50 | 625*625*300 | |
| 34 | 1 | PAWSV2-34 | 27.0±0.25 | 34.5±0.25 | 70 | 25 | 688*688*200 | |
| 42 | 1-1/4 | PAWSV2-42 | 33.5±0.25 | 42.5±0.35 | 100 | 25 | 578*578*280 | |
Non-Flame Retardant
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 16 | 3/8 | PXWSNA-16 | 10.2±0.25 | 15.8±0.2 | 50 | 50 | 500*500*150 | |
| 21 | 1/2 | PXWSNA-21 | 15.6±0.25 | 21.2±0.2 | 50 | 50 | 588*588*180 | |
| 28 | 3/4 | PXWSNA-28 | 21.0±0.25 | 28.5±0.3 | 50 | 50 | 625*625*300 | |
| 34 | 1 | PXWSNA-34 | 27.0±0.25 | 34.5±0.25 | 70 | 25 | 688*688*200 | |
| 42 | 1-1/4 | PXWSNA-42 | 33.5±0.25 | 42.5±0.35 | 100 | 25 | 578*578*280 | |
